ERC Types

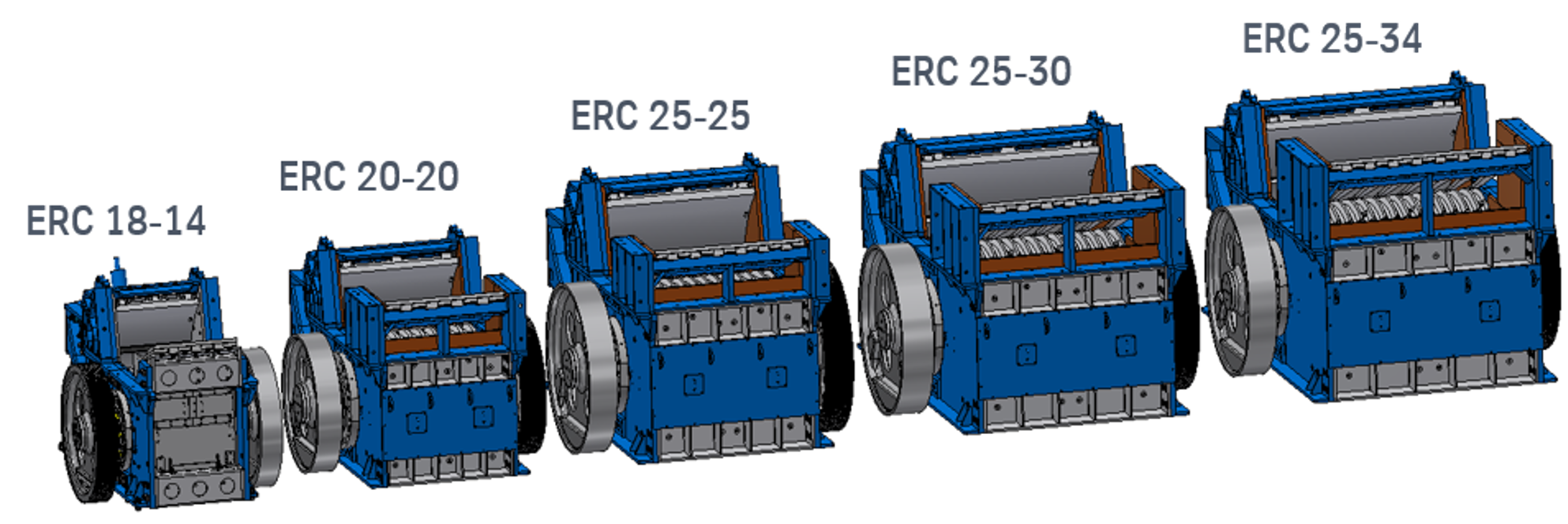

Five ERC® types for various applications

< Back

ERC® Types

Model
Specifications
ERC®
18-14
ERC®
20-20
ERC®
25-25
ERC®
25-30
ERC®
25-34
Weight [kg] 1)83.000120.000178.000204.000230.000
Drive motor rating [kW] 2)160-300300-450450-600500-700600-800
Roll diameter A [mm]1.8002.0002.5002.5002.500
Roll diameter B [mm]1.4002.0002.5003.0003.400
Feed opening [mm] 3) 1.0001.1801.2801.2801.280
Grizzly length [mm] 4)1.1001.2001.3002.0002.300
Gap setting CSS [mm] 5)70-20070-22070-220100-300100-300
Capacity [mt/h] 6)600-1.4001.000-2.5002.500-3.1003.400-6.0004.500-8.000
Model
Specifications
ERC®
18-14
ERC®
20-20
ERC®
25-25
ERC®
25-30
ERC®
25-34
Weight [kg] 1)83.000120.000178.000204.000230.000
Drive motor rating [kW] 2)160-300300-450450-600500-700600-800
Roll diameter A [mm]1.8002.0002.5002.5002.500
Roll diameter B [mm]1.4002.0002.5003.0003.400
Feed opening [mm] 3) 1.0001.1801.2801.2801.280
Grizzly length [mm] 4)1.1001.2001.3002.0002.300
Gap setting CSS [mm] 5)70-20070-22070-220100-300100-300
Capacity [mt/h] 6)600-1.4001.000-2.5002.500-3.1003.400-6.0004.500-8.000

1) Weights indicated do not include base frame, drive motor and tools. Weights may vary depending on actual machine configuration.

2) Motor rating range applicable, actual motor rating depending on the feed material characteristics,
desired product size and actual machine configuration.

3) Maximum vertical dimension between jaw liners and roll liners.

4) Standard length. Screen length may vary depending on actual machine configuration.

5) Close side setting (CSS). Maximum range of gap adjustment 150 mm (ERC 18-14) and 200 mm (ERC 25-25, ERC 25-30, ERC 25-34).

6) Equipment capacity calculated based on a bulk density of 1.7 t/m³. Actual values are depending on feed material characteristics (e.g. hardness UCS, R.O.M. particle size distribution, moisture content), desired product size and actual machine configuration (e.g. gap setting OSS).
