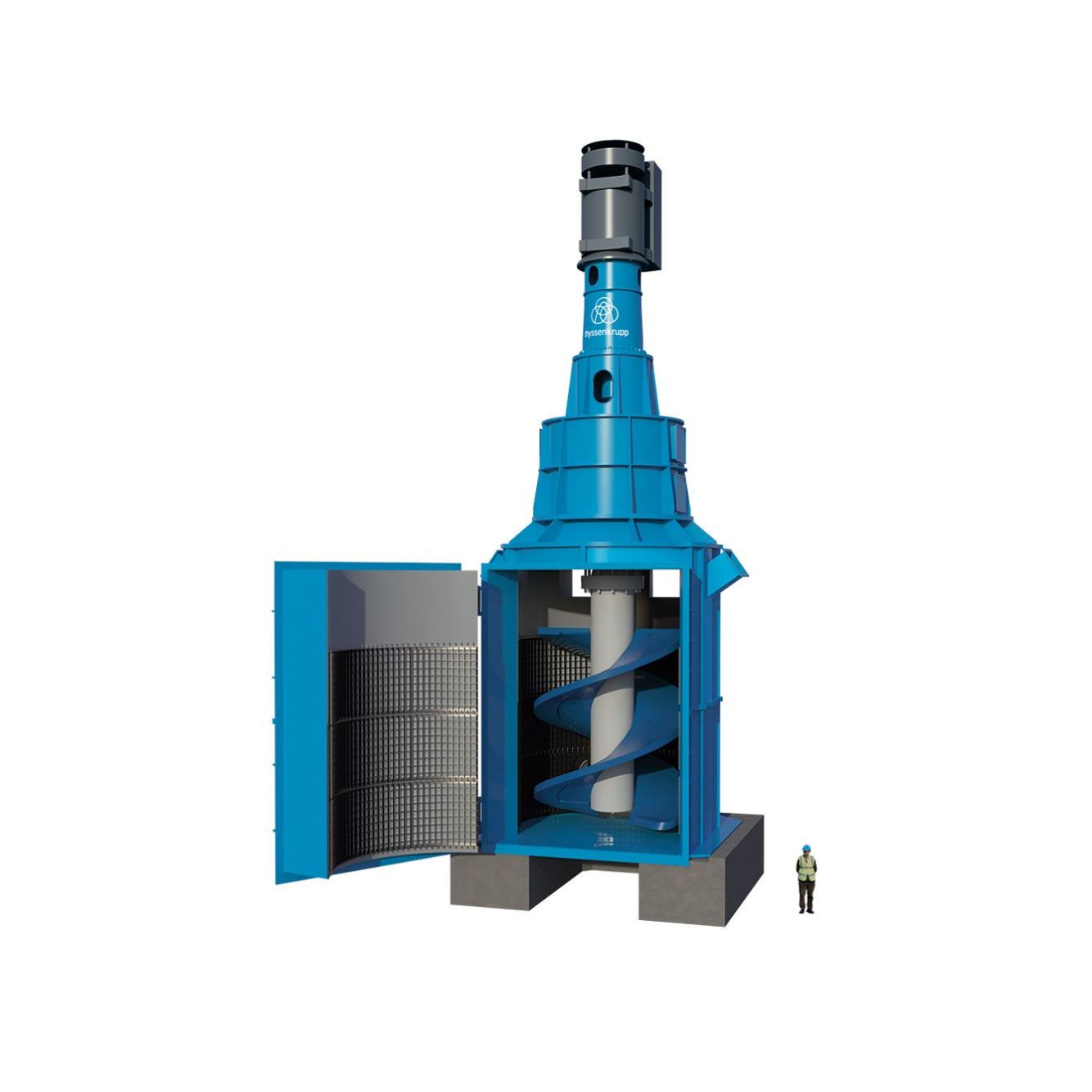

velix® vertical-helix stirred media mill for ore processing

The efficiency triangle: less energy – high reliability – less maintenance

When we began work on the velix® (vertical helix stirred mill ) we considered every element that defines a stirred media mill: grinding screw, liner, screw shaft, housing, drive systems, services, and plant processing. And we challenged ourselves to find the best way to engineer each one of them. When we put it all together, the outcome was something entirely different: the velix® (vertical-helix stirred media mill ). It is now available in three different sizes: VX3500, VX4500 and VX6000.

VELIX

Make sure you’re fit for the future

The velix® enables you to master future challenges in ore processing – the challenges of increasing energy costs, lower ore grades, and fine-grained ores that require an energy-efficient solution delivering high capacity and an optimized comminution process. Not only was velix® jointly developed by thyssenkrupp and EIRICH to conquer all these challenges; it also offers the additional benefits of optimized wear lifetime, easy maintenance, and ease of operation.

The efficient alternative

The velix® is an efficient solution for our customers with special product fineness requirements. This is especially true with regard to power consumption in fine or ultra-fine grinding as velix® consumes less energy than the conventional solution with a ball mill . Since our customers are increasingly focusing on their carbon footprint – just as we are at thyssenkrupp ­– we regard it as our duty as an innovative company to provide efficient grinding solutions in green- and brownfield projects that reduce consumption of natural resources. The velix® solution is an efficient alternative to the ball mill with additional value added in secondary grinding, tertiary grinding, or regrinding in ore processing .

More successful grinding

Your operations will benefit from the following standout features of the velix® vertical mill:

Maintenance-free grid liner

  • Reduced wear and long operating life thanks to the autogenous grid liner.

Grinding screw

Segmented mill housing

Screw shaft design

Drive system

Foundations

Energy efficiency

Lower operating costs with HPGR and velix®

The high pressure dry finish grinding concept and the ultra-efficient velix® will lower your operating costs by saving thousands of cubic meters of process water per day compared to conventional grinding circuits. This way, you will also benefit from a more sustainable use of this valuable resource.

Profit from our full-range grinding portfolio

You will find it much easier to work with just one partner during the different phases of your project. With a partner who overviews the entire grinding process so the different flow-sheet options can be optimally matched to your requirements. That partner is thyssenkrupp.

We are convinced that our vast experience in mineral processing enables us to understand your needs better and come up with the most efficient customized solution.

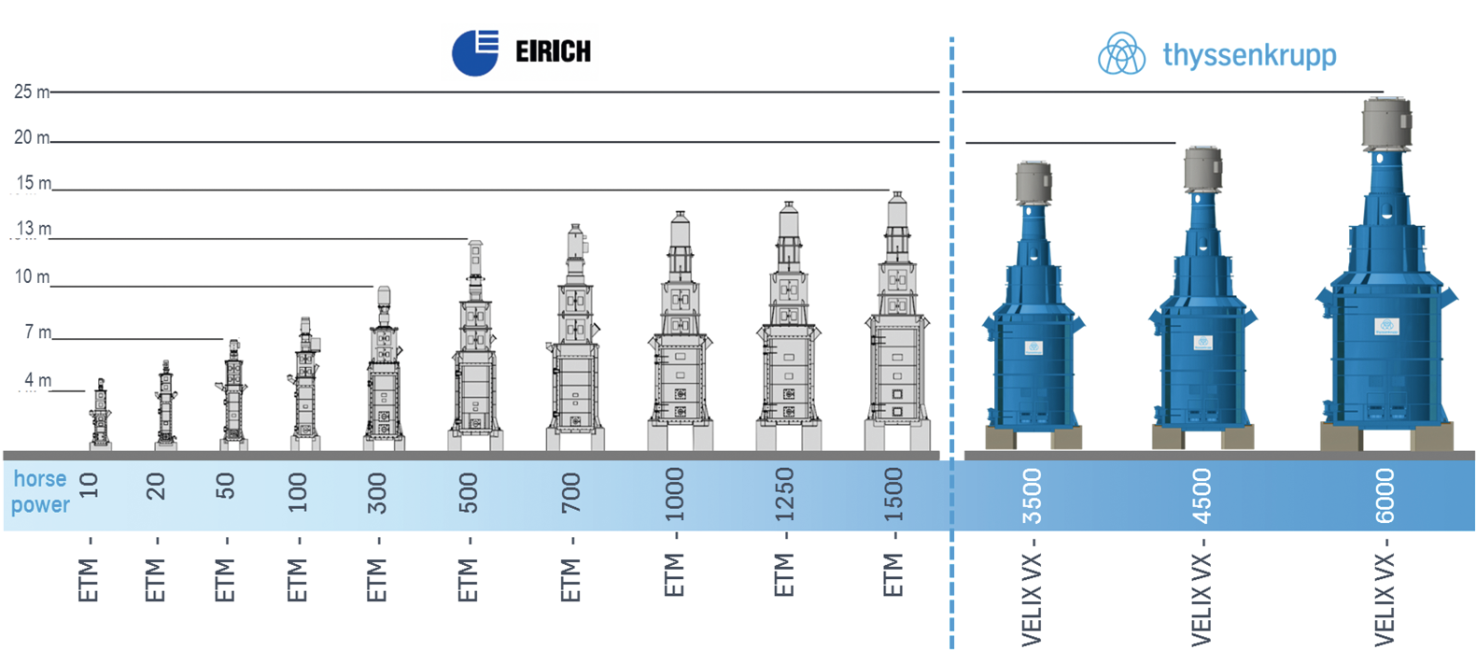

Design split of velix®

Sizes of velix® vertical-helix stirred media mill designed by thyssenkrupp Industrial Solutions and Eirich

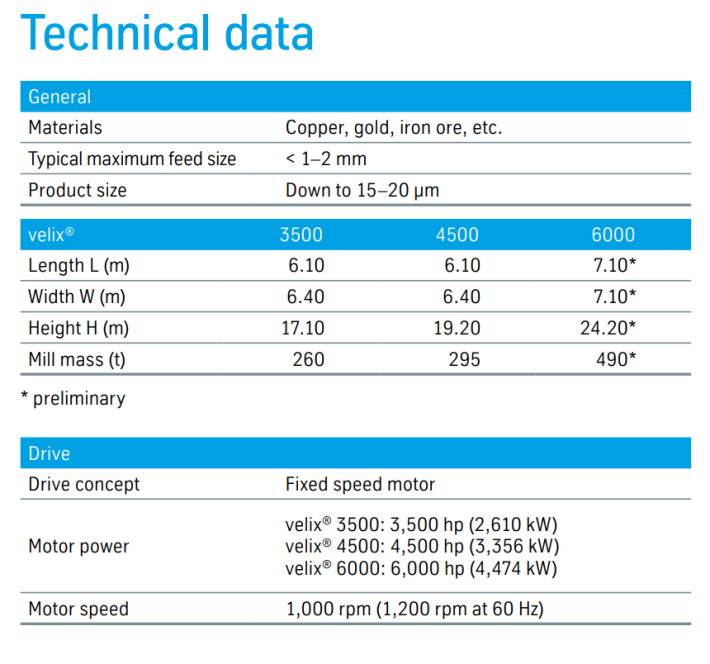

Technical data of velix®
