High Pressure Pumps

High pressure water jet pumps for water jet cutters

For nearly half a century we have been designing and manufacturing ultrahigh pressure pumps for incredible pressures of up to 14,000 bar for industrial use. Whenever reliability at high pressures is of utmost importance Uhde High Pressure Technologies in Hagen, Germany is a name which is recognized worldwide.

Uhde High Pressure Pumps History

Our high pressure pumps - the core element of a waterjet cutting system - with steeples working pressures of up to 6,000 bar are implemented in all relevant industrial sectors: from food industry over glass and stone to aerospace.

Starting at the first development stage and continuing with manufacturing of parts, software programming, and assembly until the final test run: water jet cutting with Uhde High Pressure Technologies means: everything takes place at our factory in Hagen, Germany.

Why choosing Uhde High Pressure Pumps?

Uhde High Pressure Pumps Advantages

Our STANDARD series is immediately operational (plug and play) more over we assure you a low investment and operating costs due to:

  • Sophisticated, service-friendly high pressure technology
  • Minimal number of parts subject to wear
  • Straightforward servicing and maintenance
  • Long servicing intervals and long service life of main wear parts

Our technical highlights:

  • Infinitely variable cutting pressure over the entire pressure range
  • Constant pressure amplitude, low pressure fluctuation
  • Minimized cycling load as a result of the long stroke
  • Autofrettage treatment of main high pressure components
  • No booster pump required
  • Patented HP check valve cartridges with exchangeable valve seats
  • Exchange and removal of piston rod seals without disassembly of the hydraulic cylinder
  • Variable displacement axial piston pump with a highly dynamic controller saves energy costs due to optimized pressure and volume adjustment
  • Double-acting synchronous cylinder with easy to install plunger coupling
  • The installed oil-air cooling and filtration system permits permanent cooling and filtering of hydraulic oil
  • Material certifications for parts subjected to pressure according to standard EN10204 / 3.1
  • CE certification / declaration of conformity or manufacturer’s declaration according to EC guidelines 2006/42/EG
  • Compliance with the directive for pressure vessels 2014/68/EU
  • Installed automatic HP relief system
  • Selectable languages on display

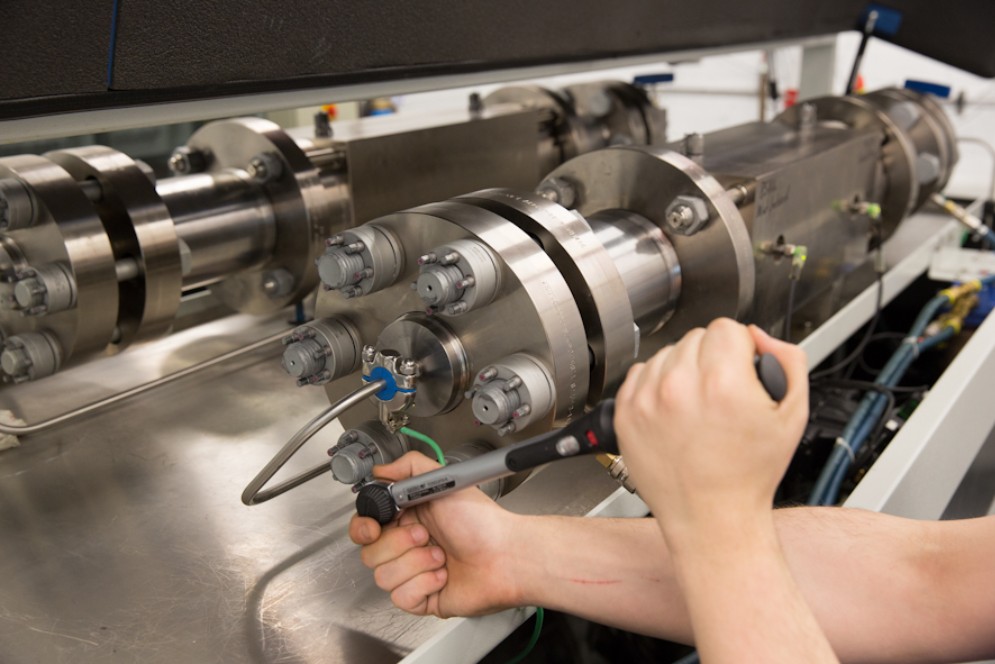

HPD 6090 Uhde HPT

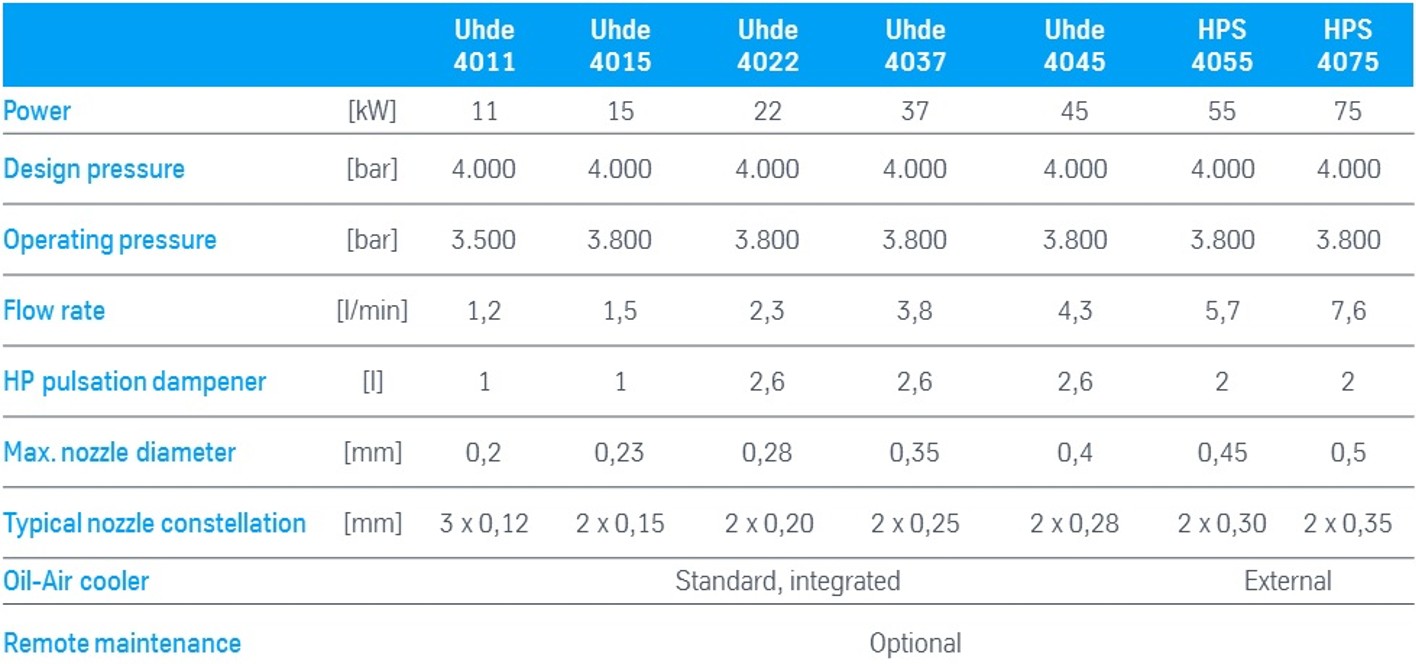

Our HP Waterjet Cutting Pump Series

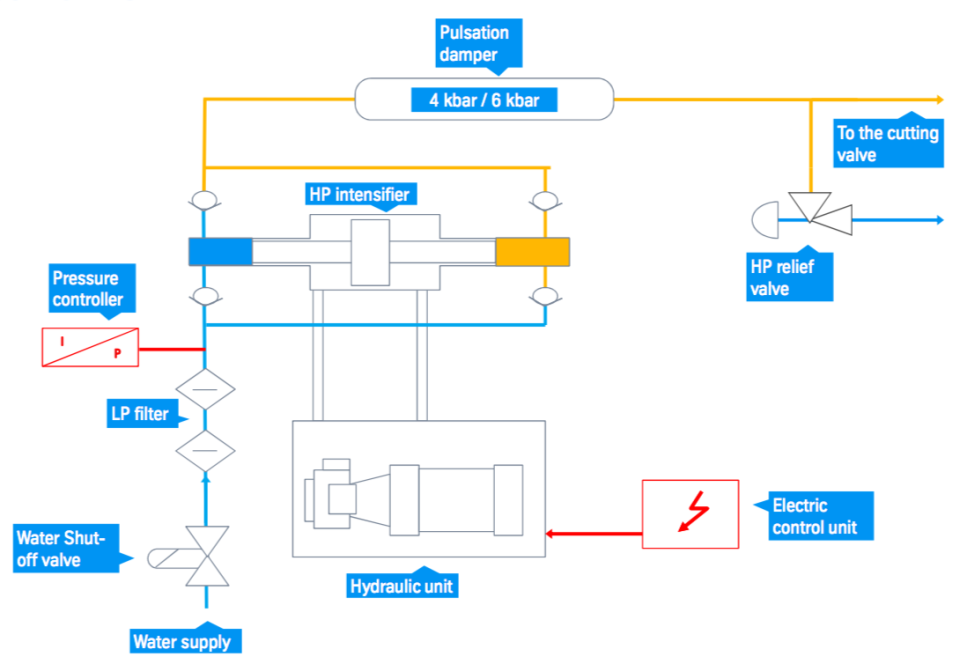

4000 bar high Pressure pump series HPS/HPD Process flow diagram

4000 bar high Pressure pump series HPS/HPD Process flow diagram

Main selection criteria by our customers for HP Pumps for 4,000 and 6,000 bar

Main selection criteria by our customers for Uhde HP Pumps

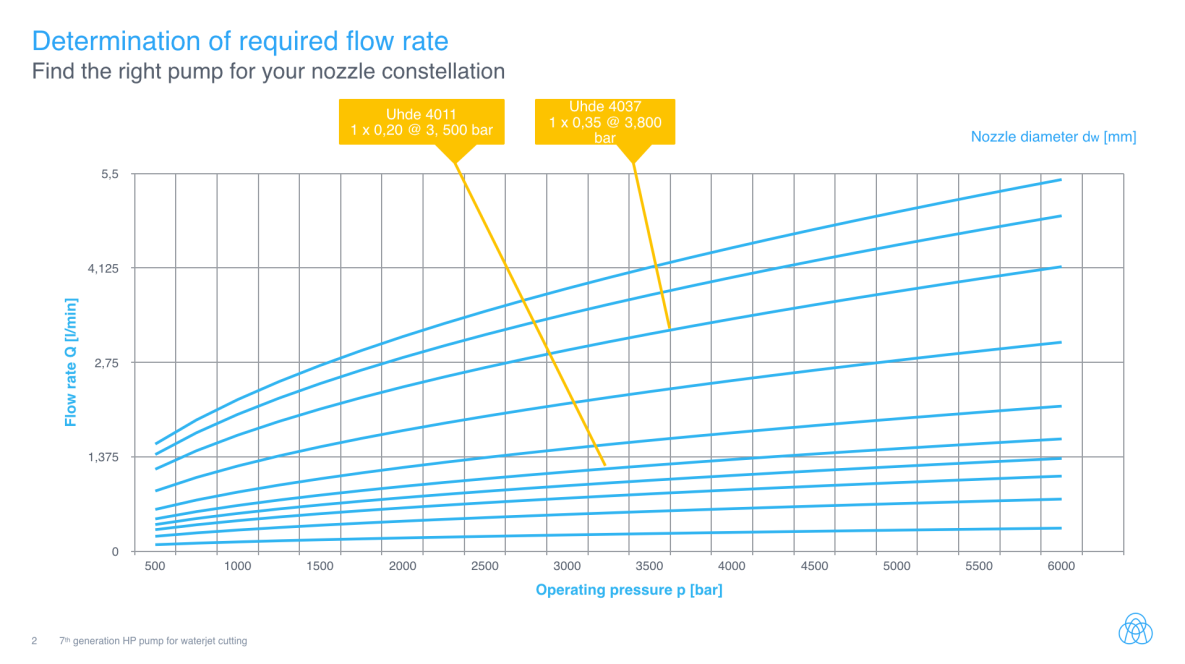

Find the right high pressure pump for your nozzle constellation

Determination of required flow rate High Pressure Pumps

4000 bar High Pressure Pump

If you require a waterjet cutting solution exclusively for abrasive cutting, our product range starts with the 4.000 bar high pressure pump. Please fill in the contact form or learn more about our 4000 bar solutions here.

4000 bar high pressure pump solution

4000 bar high pressure pump solution

6000 bar High Pressure Pump

If you require a waterjet cutting solution for pure waterjet cutting we supply our 6.000 bar high pressure pump for highest demands. Please fill in the contact form or learn more about our 6000 bar solutions here.

6000 bar high pressure pump solution

6000 bar high pressure pump solution
